Dewatering Equipment
Payload Sand And Slurry Pump

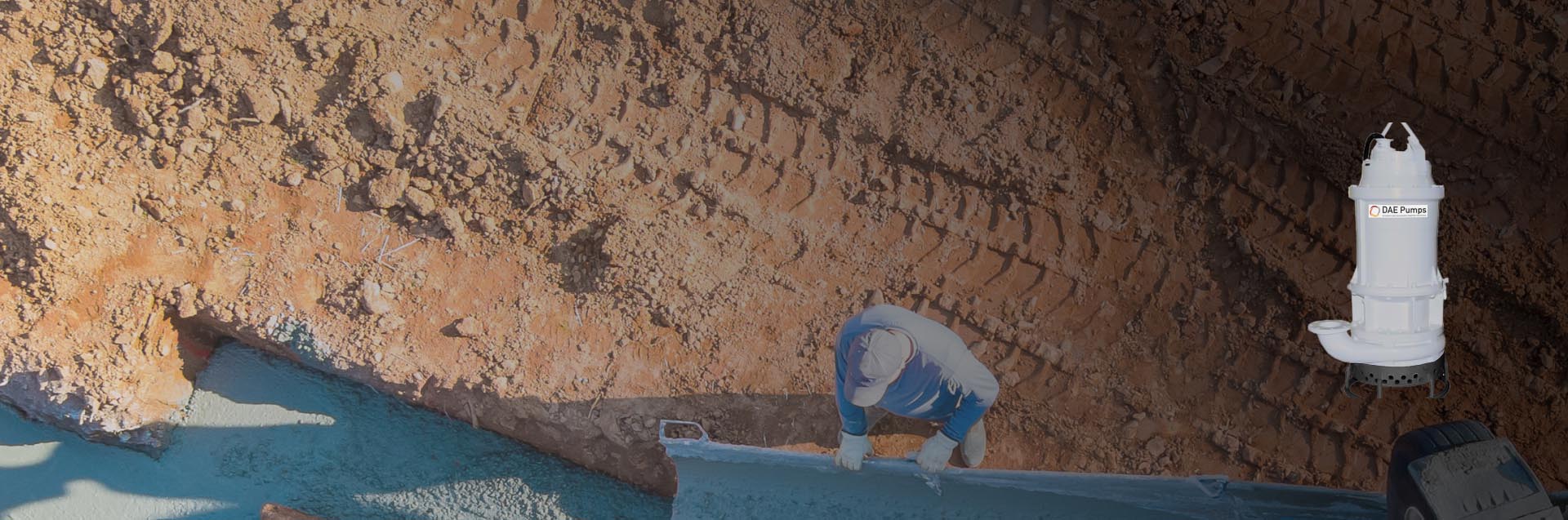

Efficient Dredging with the Payload Electric Sand & Slurry Pump
The DAE Pumps Payload Electric Sand & Slurry Pump, available from UAE Pump and Dredge, is a reliable and efficient solution for heavy-duty dredging and slurry transport. Built to handle the most demanding conditions, this pump can move up to 2,000 cubic meters of solids per hour. Featuring a non-clogging suction design, it efficiently manages particles up to 3.9 inches in diameter and handles up to 30% solid content through a 16-inch discharge pipe.
Versatile and Powerful Pumping Solution
Part of the DAE Pumps submersible sand and slurry pump series, the Payload pump is a versatile asset in any dredging operation. It can be customized for specific applications, including cable suspension or excavator mounting, to offer optimal flexibility. Additional options, such as an agitator or water jetting ring, enhance its ability to manage organic materials like seaweed and aquatic grass, ensuring consistent performance in challenging environments.
Key Features of the Payload Electric Sand & Slurry Pump
- Durability and Abrasion Resistance: Designed to handle harsh dredging environments with minimal wear
- Multiple Size Options: Available in sizes ranging from 3″ to 16″ for diverse applications
- High Capacity: Capable of pumping up to 2,000 cubic meters per hour
- Solid Handling: Efficiently handles slurry with up to 30% solid content
- Operational Depth: Capable of functioning at depths of up to 250 meters
- Robust Electric Motor: Delivers powerful torque and ensures long operational life
Technical Specifications
Performance
- Max Capacity: 2,860 GPM (650 m³/h)
- Max Head: 89.5 ft (27 m)
- Impeller Type & Size: 16" (405 mm), 3-blade closed design
- Discharge Size: 12" (300 mm)
- Solid Handling: 3.6" (90 mm)
Materials
- Pump Casing: Spheroidal Cast Iron (EN-GJS500-7)
- Motor Housing: Cast Iron (EN-GJL-250)
- Wear Parts: High Chrome (EN-GJN-HV600 / XCr18)
- Main Shaft: High-Tensile Steel (39NiCroMo3)
Motor Details
- Motor Displacement: 9.8 cu. in. (160 cc)
- Max Oil Flow: 72 GPM (270 l/min)
- Max Pressure: 4,351 PSI (300 bar)
- Power: 185 HP (475 kW)
- Speed: 1,450 RPM
Seals & Lubrication
- Motor Side Seals: 2 Lip Seals (BUNA)
- Impeller Side Seals: 5 Lip Seals (3 BUNA + 2 PTFE) + 1 V-ring (TPU)
- Oil Type: ISO 320
Comprehensive Dewatering Solutions Tailored to Your Needs
At UAE Pump and Dredge, our Payload Electric Sand & Slurry Pumps are engineered for high efficiency, easy operation, and low maintenance. The pumps’ sealed, modular design simplifies use and servicing, while providing exceptional durability for long-term operations. These features ensure consistent, reliable performance and increased productivity, making DAE Pumps the preferred choice for dewatering and slurry transport.
